    10000l mobile liquid oxygen storage tank

    Ask Lasest Price
    Brand Name : SASPG
    Model Number : CF-10000/16
    Certification : ASME/CE/GB
    Supply Ability : 50 Sets / Year
    Price : Negotiable
    Delivery Time : 8months-18months
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    10000l mobile liquid oxygen storage tank

    10000l mobile liquid oxygen storage tank

    10000l mobile liquid oxygen storage tank


    Model: CF-10000/16


    Main technical parameter:

    Available volume: 10000L

    Geometric volume: 10520L

    Max working pressure: 16bar

    Insulation method: Vacuum powder

    Design temperature: -196℃

    Medium: LOX (LIN, LAr)

    Main body material SA-240M304/Q245R

    Dimension: ~5900×2216×2260mm

    Empty weight: ~6800Kg


    Scope of supply

    (1) Tank body 1 set

    (2) Booster 1 set

    (3) The Saddle / The Frame 1 set

    (4) The Valves of tank(equipped with high-quality valves, instruments and liquid level gauge)

    (5) Operation box 1 set

    (6) 5 meters of tube and tubebox: 1 set

    (7) Technical documents 1 set

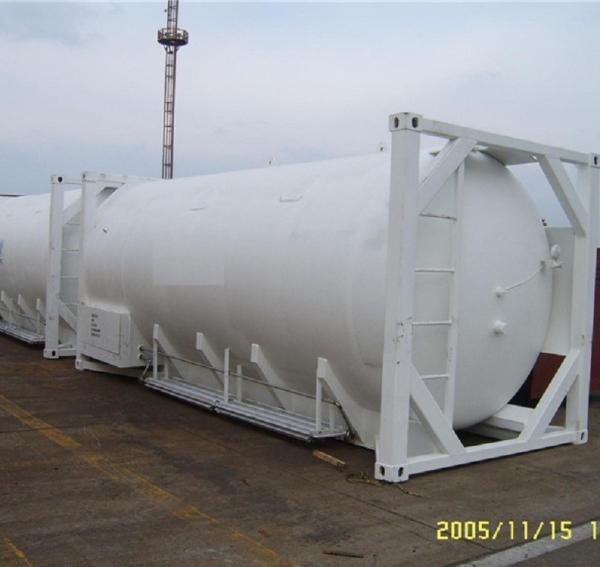

    Type: Frame type

    10000l mobile liquid oxygen storage tank


    Saddle type


    10000l mobile liquid oxygen storage tank


    Introduction

    The mobile cryogenic tank integrates advantages of the liquid gas storage tank and the semi-trailer tanker. It is light in weight and compatible with various types of frames. So, it is easy to be fitted in any tanker frame. Also due to the light weight, it reduces the shipping costs.

    Advantages

    Customers can use the existing tanker frame. There is no need to find an extra, thus saving import duties and production costs. High transport efficiency saves efforts and resources. Due to its compact structure, small footprint, centralized control, easy maintenance and long life, the mobile tank maximizes the economic efficiency.

    Applications

    The mobile cryogenic tank is mainly used for the transport of cryogenic liquid O2, N2, Ar, CO2, etc. It is widely used in the gas industry, hospitals, metal smelters, and chemical plants.

    Main Parameters

    1. suitable medium: liquid Ar, liquid O2, liquid N2 and liquid CO2
    2. working pressure: determined by the medium
    3. working temperature: determined by the medium
    4. effective capacity: 5-25 m3 (can be designed according to customer needs)

    Purchasing Guide

    If you would like to purchase our mobile cryogenic tank, please let us know the following information, we will promptly provide you a quotaion.
    1. medium, volume, pressure
    2. size of tanker chassis
    3. do you have specific requirements for manufacturing standards? If not, the design and manufacture will comply with ASME standards.
