    High Capacity 2.5MPa LNG Regasification Plants 480000 Nm3/D

    Ask Lasest Price
    Brand Name : SASPG
    Model Number : LNG PLANT 480,000 Nm3/d
    Certification : ASME/CE/GB
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 50 Sets / Year
    Delivery Time : 8months-18months
    • Product Details
    • Company Profile

    High Capacity 2.5MPa LNG Regasification Plants 480000 Nm3/D

    2.5MPa LNG Liquefaction LNG Processing Plant 480000 Nm3/D​
    Project Introduction:

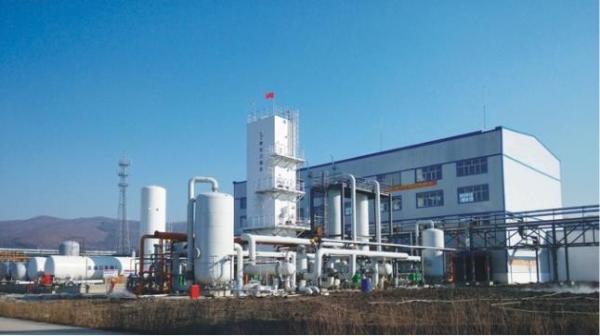

    According to the requirements of the owner, SASPG provide the owner with a natural gas liquefaction plant with a capacity of 20,000 Nm3/h. The whole plant includes pretreatment system, liquefaction system and related auxiliary system.

    1. Capacity
    1 NG Incoming Capacity48×104Nm3/d
    2 NG Incoming Pressure2.5MPa
    3 NG Incoming Temperature50℃
    4 Operation Flexibility50~110%
    5 Annually Operation Hours8000 hours
    6 Design Working life20 years
    1. LNG Specifications
    1 Output169t/d(518m3/d)
    2 Temperature-161℃
    3 Storage Pressure15KPa
    4 Main CompositionCH4+CnHm: ≥99%; Other: ≤1%
    1. Others(exhaust)

    1 Flow

    10700Nm3/h

    2 Temp.

    30℃

    3 Pressure

    ~1.15MPa

    4 Main CompositionH2: 29.43%; N2: 36%; CO: 34.39%.

    SASPG Introduction:
    Since the 1970s, SASPG has developed natural gas (associated gas) liquefaction and separation technology, specializing in the purification and separation of natural gas, coalbed methane, coal-to-gas, coke oven gas and various chemical tail gases; and independent process package design for liquefaction projects , complete equipment supply, EPC, commissioning/start-up supervision, operator training. The company has obtained Class B qualification for chemical engineering design.
    The 500,000Nm3/d associated gas separation plant made by SASPG was awarded the Second Prize for Scientific and Technological Achievements and China National Quality Golden Prize.
    Since 1998 , SASPG has exported to Southeast Asia 2 sets of natural gas liquefaction/separation plants with capacity of 45 x 1 O'Nm'/d, 28 x 10'Nm'/d respectively, to Europe one set of natural gas de-nitrification and liquefaction plant with capacity of 100Vd. SASPG has undertaken the research for 2,600,000 T/year LNG localization project issued by the China National Energy Bureau and supplied several sets of 10 x 10'Nm3/d-30 x 10'Nm3/d LNG plants and dozen sets of 50 x 10'Nm3/d-2 00 x 10'Nm3/d LNG plants.
