    15m3 Ln2 Cryogenic Liquid Storage Tank Vacuum Insulated 8 Bar

    Ask Lasest Price
    Brand Name : SASPG
    Model Number : ZCF-15000/8
    Certification : ASME/CE/GB
    Supply Ability : 50 Sets / Year
    Price : Negotiable
    MOQ : 1 unit
    Delivery Time : 8months-18months
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    15m3 Ln2 Cryogenic Liquid Storage Tank Vacuum Insulated 8 Bar

    Vacuum insulated cryogenic liquid storage tank for industrial gas filling station


    Product specification: Cryogenic liquid storage tank

    Product model:ZCF-15000/8

    General technical parameters:

    1. Valid capacity: 15m3

    2. Max working pressure: 0.785Mpa

    3. Heat insulation mode: Vacuum Powder

    4. Medium: LO2(LN2, LAr)

    5.External dimension: ~Φ2416*8075mm

    6. Main material (inner vessel/outer barrel ): 0Cr18Ni9/Q235-B

    7. Weight: ~9520kg

    8. Design temp: +40/-196℃


    PRODUCTION PROCESS OF STORAGE TANKS


    1). cutting materials

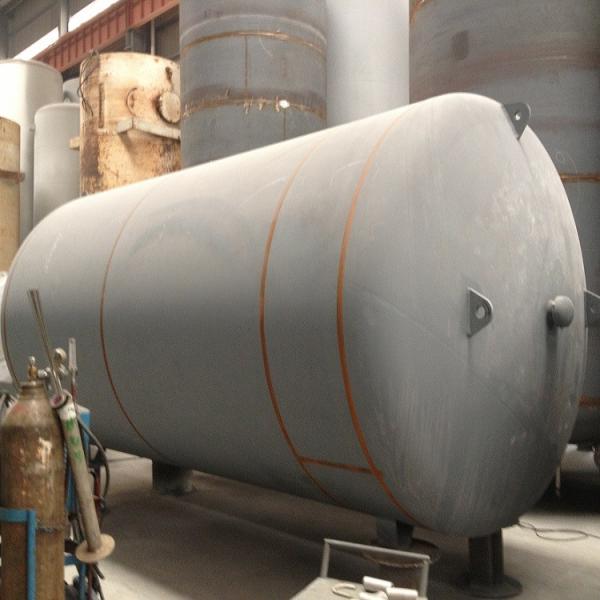

    15m3 Ln2 Cryogenic Liquid Storage Tank Vacuum Insulated 8 Bar


    2). rolling machines for circling


    3). welding


    4). re-circling after welding

    5). outer vessel’s abrasive blasting and anticorrosive painting for outside surface

    6). pipe connecting and assembly of inner vessel and outer vessel


    7). valves installation


    8). perlite filling


    9). vacuum-pumping


    10). final painting and ready for shipment


    FAQ

    1. Q: We would like to buy a storage tank.

    Re: Before making quotation to you, please kindly specify the following information:

    1) Capacity:

    2) Medium (LO2,LN2,LAR or LCO2?):

    3) Working pressure:

    4) Vertical or horizontal:

    2. Q: What is your production standard? Can you manufacture your products under ASME standard?

    Re: Our products are designed, manufactured and tested as per reference standards of GB150, Safety technology supervision regulations of pressure vessels and some other reference Chinese standards.

    Our company has obtained the A2 and C2, C3 Pressure Vessel Fabrication Certifcates ,Grade GC1 Pressure Pipe& Vessel Construction Certifcates, ISO9001 Quality Certificate, ASME Certificate and U Stamp. So, if you ask for ASME stamp, we are able to manufacture your products under ASME standard.

    3. Q: What’s the warranty for the storage tanks?

    Re: Our warranty is one year after shipment. Within one year, we will send broken spare parts at our cost upon request if it is proved to be our production defect. In fact, we rarely receive any spare parts request. If the tanks are maintained properly, they can be used for 15-20 years.

    4. Q: Have you supplied tanks to any renowned companies?

    Re: Our group company is a regular strategic partner of some big gas companies, such as Messer, Boc, Air Product and Air Liquide, etc in China. We have supplied many storage tanks for them with different sizes. The biggest size we ever provided is 3000m3 ordinary pressure storage tank. We also made high pressure storage vessels for them, such as 100m3 LCO2 tanks, 10m3 (20m3, 30m3)LO2 (LN2, LAR) tanks. Meanwhile, we are one of the long-term storage tank suppliers for Pepsi and Coca-Cola in China.

    Just for your information, our company is also a top two manufacturer producing air separation plants in China. The biggest air separation plant we have ever made is 60,000Nm3/h, famous for its advanced technology and reliable performance. Our air separation plant is also supplied to Messer Vietnam. Please be noted that our company is a giant cryogenic equipments company with more than 40 years history.

    WHAT WE CAN SUPPLY?

    We specialize in producing air separation plants, CO2 recovery plants, cryogenic liquid storage tanks, ISO tanks, semi-trailer tankers, vaporizers, gas filling stations, cylinders and dewars, dry ice machines, compressors and cryogenic pumps etc.

    If you have any need, pls feel free to contact us at any time and we will give your reply promptly. Thanks.
